Levee Inspections Along the Elizabeth River

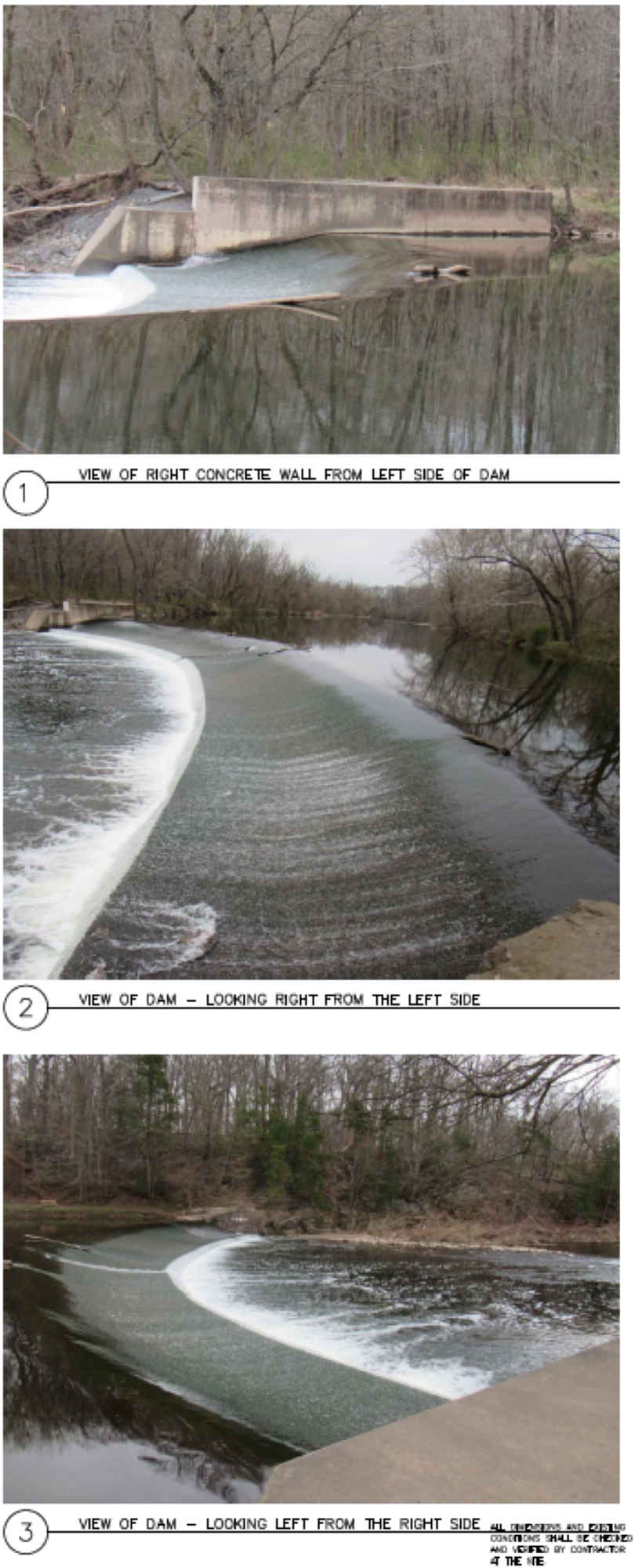

Ursino Dam on the Elizabeth River in Union County, New Jersey is one of the sites Princeton Hydro inspected for flood control, ensuring the system is providing the level of protection it was designed to deliver.

By Brendon Achey, Princeton Hydro’s Lead Geologist; Soils Laboratory Manager; Project Manager

Located 20 miles southwest of New York City, the City of Elizabeth, New Jersey, is situated along the Elizabeth River. For the city’s 125,000 residents, living along the river has many benefits, but the benefits are not without flood risk. In order to manage the risk associated with potential flooding, a series of levees and floodwalls were installed along the banks of the Elizabeth River. A levee is an embankment that is constructed to prevent overflow from a river. They are a crucial element for protecting cities from disastrous flooding, and as such they require periodic inspections to ensure that all components are functioning properly.

Princeton Hydro was contracted by the U.S. Army Corps of Engineers, New York District (USACE NYD) to perform rigorous flood control project inspections (i.e., “Periodic Inspections”) for the four levee systems located along the Elizabeth River.  For this project, our team inspected over 17,000 linear feet of levee embankment and 2,500 linear feet of floodwall.

Levee systems are comprised of components which collectively provide flood risk management to a defined area. These components can include levees, structural floodwalls, closure gates, pumping stations, culverts, and interior drainage works. These components are interconnected and collectively ensure the protection of development and/or infrastructure that is situated within a floodplain. Failure of just one critical component within a system could constitute an overall system failure. During Hurricane Katrina, for example, dozens of levees were destroyed, leaving the Louisiana coast with billions of dollars in damage and over one thousand lives lost.

Periodic inspections are necessary in order to ensure a levee system will perform as expected. They are also needed to identify deficiencies in the levee, or areas that need monitoring or immediate repair. Critically important maintenance activities include continuously assessing the integrity of the levee system to identify changes over time, collecting information to help inform decisions about future actions, and providing the public with information about the levees on which they rely.

Levee Inspection Process

Periodic inspections are extremely comprehensive and include three key steps: data collection, field inspection, and development of a final report.

Data Collection

Prior to conducting field inspections, Princeton Hydro’s engineers evaluated the Elizabeth River levee system’s documented design criteria. This evaluation was conducted to assess the ability of each feature and the overall system to function as authorized, and also to identify any potential need to update the system design. Princeton Hydro teamed with HDR to carry out the inspections. A comprehensive review of existing data on operation and maintenance, previous inspections, emergency action plans, and flood fighting records was also performed.

Field Inspection

The Princeton Hydro field inspection team consisted of geotechnical, water resource, mechanical, structural, and electrical engineers. Detailed inspections were performed on each segment of each levee system.  This included the detailed inspection and documentation of over 17,000 linear feet of levee embankment, over 2,500 linear feet of floodwall, four pumping stations, 29 interior drainage structures, five closure gates, and various other encroachments and facilities. Princeton Hydro identified, evaluated, and rated the state of each of these system elements. As part of this field inspection task, Princeton Hydro utilized a state-of-the-art tablet and GIS technology in order to field-locate inspection points and record item ratings. This digital collection of data helps expedite data processing and ensures higher levels of accuracy.

Development of Final Report

Princeton Hydro prepared a Periodic Inspection Report for each of the four levee systems inspected, which included the results of the design document review, methods and results of the field inspection, a summary of areas/items of concern, a preliminary engineering assessment of causes of distress or abnormal conditions, and recommendations for remedial actions to address identified concerns. Final report development included briefing the USACE Levee Safety Officer (LSO) on our inspection findings, assigned ratings, and recommendations.

Levee inspections are vital to the longevity of levee systems and the safety of the communities they protect. By providing the municipalities with detailed inspection reports, effective repair and management programs can be designed and implemented efficiently. This helps to ensure the levee systems are providing the level of protection that they were designed to deliver.

Princeton Hydro’s Geoscience and Water Resource Engineering teams perform levee and dam inspections throughout the Mid-Atlantic and New England Regions. For more info, visit: http://bit.ly/PHEngineering

Brendon Achey provides a wide range of technical skills and services for Princeton Hydro. His responsibilities include: project management, preparation and quality control of technical deliverables, geotechnical investigations and analysis, groundwater hydrology, soil sampling plan design and implementation, and site characterization. He is responsible for managing the daily operations of the AASHTO accredited and USACE validated soil testing laboratory. In addition to laboratory testing and analysis, Brendon is responsible for analyzing results in support of geotechnical and stormwater management design evaluations. This may include bearing capacity and settlement analysis of both shallow and deep foundations, retaining wall design, and recommendations for stormwater management practices.

Understanding and Implementing Green Infrastructure

By Tucker Simmons and Dr. Clay Emerson, PE, CFM

People generally think of green infrastructure as an eco-friendly way to handle stormwater runoff. While many green infrastructure elements are planned and managed specifically for stormwater control, the capabilities and benefits are far reaching. In this piece, we’ll provide an in-depth look at all that green infrastructure encompasses, best practices, and real-world examples of green infrastructure projects in action.

WHAT IS GREEN INFRASTRUCTURE?

Defined as an approach to water management that protects, restores, or mimics the natural water cycle, green infrastructure can be implemented for large scale projects and small scale projects alike.

Unlike conventional, or “gray” infrastructure, green infrastructure uses vegetation, soil, and other natural components to manage stormwater and generate healthier urban environments. Green infrastructure systems mimic natural hydrology to take advantage of interception, evapotranspiration and infiltration of stormwater runoff at its source. Examples include permeable pavers, rain gardens, bioretention basins, rain barrels, and tree boxes.

WHY IS GREEN INFRASTRUCTURE BENEFICIAL?

Green infrastructure provides various benefits, including cleaning and conserving water, reducing flooding, improving public health, providing jobs, beautifying neighborhoods, supporting wildlife and providing economic benefits at both the larger community and individual household level. Let’s take a closer look at some of the primary benefits:

Prevents Flooding: By absorbing and slowing the flow of water, green infrastructure can reduce the burden on storm sewer systems and mitigate localized flooding.

Saves Money: While some green infrastructure designs may require the same or greater initial investment than conventional strategies, green design methods provide a big return in reducing costs over the long-term.

Improves Water Quality: Through natural absorption and filtration processes, green infrastructure significantly reduces stormwater runoff volume, decreases the pollutants and particulates within the stormwater, and improves the quality of the runoff flowing into surrounding water bodies.

Improves Air Quality: Green infrastructure techniques like tree boxes, green roofs and vegetative barriers have long been associated with improving air quality. Urban tree boxes help shade surfaces, effectively putting moisture into the air while reducing greenhouse gases. Trees mitigate heat and air pollution, both cooling and cleaning the air.

Enhances Aesthetics: Many green infrastructure practices utilize native plants and trees to improve runoff absorption and reduce stormwater pollution. This vegetation can provide a sound barrier or privacy screen for properties, and enhances the overall aesthetics of the surrounding environment.

Increases Property Values: Research shows that property values increase when trees and other vegetation are present in urban areas. Planting trees can increase property values by as much as 15%.

LARGE-SCALE GREEN INFRASTRUCTURE IMPLEMENTATION:

With the use of proper design techniques, green infrastructure can be applied almost anywhere and is especially beneficial in urban areas. In developed environments, unmanaged stormwater creates two major issues: one related to the volume and timing of stormwater runoff (flooding) and the other related to pollutants the water carries. Green Infrastructure in urban environments can recharge groundwater, decrease runoff, improve water quality, and restore aquatic habitats while controlling flooding.

Across the United States, more than 700 cities utilize combined sewer systems (CSS) to collect and convey both sanitary sewage and stormwater to wastewater treatment facilities. During dry weather, all wastewater flows are conveyed to a sewage treatment plant where it receives appropriate treatment before it is discharged to the waterway. However, during heavy rainfall or significant snowmelt, the additional flow exceeds the capacity of the system resulting in a discharge of untreated sewage and stormwater to the waterway; this discharge is referred to as a combined sewer overflow (CSOs). For many cities with CSS, CSOs remain one of the greatest challenges to meeting water quality standards. Green infrastructure practices mimic natural hydrologic processes to reduce the quantity and/or rate of stormwater flows into the CSS.

New Jersey, as part of the 2012 USEPA’s Integrated Municipal Stormwater and Wastewater Planning Approach Framework, utilized green infrastructure as one of the main components in managing its CSS and reducing CSOs. Because of the flexibility of green infrastructure in design performance, it can reduce and mitigate localized flooding and sewer back-ups while also reducing CSOs. An integrated plan that addresses both overflows and flooding can often be more cost-effective than addressing these issues separately. New Jersey, in addition to meeting its CSO reduction goals, is using green infrastructure throughout the sewershed to build resilience to large storm events and improve stormwater management.

Stormwater planters installed by the Philadelphia Water Department

Philadelphia takes advantage of numerous green stormwater infrastructure programs such as Green Streets, Green Schools, and Green Parking. There are a wide variety of green infrastructure practices that Philadelphia is using to decrease stormwater runoff throughout the entire city. After just five years of implementing the Green City, Green Waterplan, Philadelphia has reduced the stormwater pollution entering its waterways by 85%. Using over 1,100 green stormwater tools (i.e. CSO, living landscapes, permeable surfaces, etc.), in just one year, Philadelphia was able to prevent over 1.7 billion gallons of polluted water from entering their rivers and streams.

New York City is using a green infrastructure program, led by its Department of Environmental Protection, that utilizes multiple green infrastructure practices to promote the natural movement of water while preventing polluted stormwater runoff from entering sewer systems and surrounding waterbodies. While attaining this goal, the green infrastructure also provides improvements in water and air quality, as well as improves the aesthetics of the streets and neighborhoods. According to the NYC Green Infrastructure Plan, “By 2030, we estimate that New Yorkers will receive between $139 million and $418 million in additional benefits such as reduced energy bills, increased property values, and improved health.”

SMALL-SCALE GREEN INFRASTRUCTURE IMPLEMENTATION:

Green infrastructure techniques are extremely beneficial on every scale. Residential homes and neighborhoods can benefit from the implementation of green infrastructure in more ways than many people realize. There are a wide variety of green infrastructure projects that can be completed with a relatively small time and financial investment. Many of us at Princeton Hydro have incorporated green infrastructure practices into our homes and properties. Here’s a look at some of those projects in action:

Dr. Steve Souza, a founding principal of Princeton Hydro, installed rain gardens throughout his property utilizing native, drought-resistant, pollinator-attracting plants. The rain gardens are designed to capture and infiltrate rainwater runoff from the roof, driveway, patio and lawn.

Princeton Hydro’s President Geoffrey Goll, P.E. built an infiltration trench in his backyard. An infiltration trench is a type of best management practice (BMP) that is used to manage stormwater runoff, prevent flooding and downstream erosion, and improve water quality in adjacent waterways.

And, in the front yard, Geoffrey installed a variety of wildflower plantings.

MUNICIPAL TOOLKIT

An interactive website toolkit was recently launched by New Jersey Future to help municipalities across the state incorporate green infrastructure projects into their communities. For this project, Princeton Hydro’s engineers and scientists provided real-world examples integrating green infrastructure into development in order to bring to light the benefits and importance of investing in green infrastructure at the local level. The New Jersey Green Infrastructure Municipal Toolkit provides expert information on planning, implementing, and sustaining green infrastructure to manage stormwater. This toolkit acts as a one-stop resource for community leaders who want to sustainably manage stormwater, reduce localized flooding, and improve water quality.

GET STARTED

Since its inception, Princeton Hydro has been a leader in innovative, cost-effective, and environmentally sound stormwater management systems. Long before the term “green infrastructure” was part of the design community’s lexicon, the firm’s engineers were integrating stormwater management with natural systems to fulfill such diverse objectives as flood control, water quality protection, and pollutant reduction. Princeton Hydro has developed regional nonpoint source pollutant budgets for over 100 waterways. The preparation of stormwater management plans and design of stormwater management systems for pollutant reduction is an integral part of many of the firm’s projects.

Interested in working with us on your next Green Infrastructure project? Contact us here.


Tucker Simmons, Water Resources Intern

Tucker is a Civil and Environmental Engineering major at Rowan University focusing on Water Resources Engineering. He is the President and player of the Rowan University Men’s DII Ice Hockey Team. His Junior Clinic experience includes the study of Bio-Cemented sand and the Remote Sensing of Landfill Fires. In the future, Tucker hopes to work on creating a more sustainable environment. Tucker enjoys playing ice hockey, being with friends and family, and exercising.



Clay Emerson, Senior Project Manager

Clay’s areas of expertise include hydrologic and hydraulic analysis, stormwater management and infiltration, nonpoint source (NPS) pollution, watershed modeling, groundwater hydrology/modeling, and water quality and quantity monitoring at both the individual site and watershed scales. His educational and work experience includes a substantial amount of crossover between engineering and environmental science applications. He has specific expertise in the field of stormwater infiltration and has conducted extensive research on the NPS pollution control and water quantity control performance of stormwater BMPs. He regularly disseminates his monitoring results through numerous peer-reviewed journal publications, magazine articles, and presentations.



*FREE* Download: Using Flood Models to Mitigate Flood Risk

Back in September, NEIWPCC offered a free research webinar on modeling and flood mitigation recommendations for a forested and urban Hudson River tributary watershed. The webinar looked at the Moodna Creek Watershed and Flood Mitigation Assessment and described how flood models were used to inform recommendations for reducing and mitigating existing and anticipated flood risk. This free webinar was hosted by our Environmental Scientist & GIS Manager, Christiana Pollack, GISP, CFM, and Jessica Jahre, CFM, AICP, a Planner with the New Jersey Department of Environmental Protection.

Pollack and Jahre, authors of the assessment, described how they used flood models to inform recommendations for reducing and mitigating existing/anticipated flood risk in the Moodna Creek Watershed. The flood mitigation assessment was conducted by Princeton Hydro and GreenVest, and funded by NEIWPCC through the New York Department of Environmental Conservation’s Hudson River Estuary Program.

If you missed the webinar, but are still interested in flood mitigation and this study, you can download a PDF of the Powerpoint below. With informative graphics and intriguing photos, this presentation will introduce you to flood mitigation strategies and techniques for many different needs.Princeton Hydro specializes in flood planning, policy, analysis, design and risk mitigation services.  To learn more our floodplain management services, visit: bit.ly/floodmanagement

Two-Part Blog Series: Flood Assessment, Mitigation & Management

In this two part blog series, we showcase our work in the Moodna Creek Watershed in order to explore some of the concepts and methods used to estimate flood risk for existing conditions and the year 2050 and develop a flood management strategy (Part One), and traditional engineering and natural systems solutions used to manage and reduce flood risk (Part Two).

Part One: Flood Assessment & Mitigation Analysis in the Moodna Creek Watershed

The greater Moodna Creek watershed covers 180 square miles of eastern Orange County, NY. The watershed includes 22 municipalities and hundreds of streams before joining the Hudson River. This region has seen tremendous growth in recent years with the expansion of regional transit networks and critical infrastructure.

The Moodna Creek watershed can be split into two sub-basins — the Upper Moodna Creek and the Lower Moodna Creek. In the span of 15 months, Hurricane Irene, Tropical Storm Lee, and Hurricane Sandy each have caused significant flooding throughout the Moodna Creek watershed, damaging public facilities, roadways, and private properties. Both sub-basin communities have noted a concern about increased flood risk as more development occurs.

As global temperatures rise, climate models are predicting more intense rainfall events. And, the flood risk for communities along waterways — like the Moodna Creek watershed — will likely increase as time passes. In order to understand existing and future risk from flood events in this flood-prone area, a flood risk management strategy needed to be developed. The strategy uses a cost-benefit analysis to review the feasibility of each measure and the overall impact in reducing flood risks.

With funds provided from a 2016 grant program sponsored by the New England Interstate Waters Pollution Control Commission (NEIWPCC) and the New York State Department of Environmental Conservation’s (NYCDEC) Hudson River Estuary Program (HEP), Princeton Hydro along with a variety of project partners completed a flood assessment and flood mitigation analysis specific to the Lower Moodna Creek watershed.

Let’s take a closer look at our work with the Lower Moodna Creek watershed, and explore some of the methods used to estimate flood risk and develop a flood management strategy:

Lower Moodna Creek Watershed Flood Assessment & Analysis

The primary Lower Moodna Creek project goals were to assess flood vulnerabilities and propose flood mitigation solutions that consider both traditional engineering strategies and natural systems solution approaches (land preservation, wetland/forest restoration, green infrastructure and green water management). The project team focused on ways to use the natural environment to reduce risk.  Instead of strictly focusing on just Moonda Creek, the team took a holistic approach which included all areas that drain into the river too. These analyses were incorporated into a Flood Assessment Master Plan and Flood Mitigation Plan, which will serve as a road map to reducing flooding issues within the watershed.

Managing Flood Risk

The first step in managing flood risk is to understand what type of exposure the communities face. The Moodna Creek project modeled flooding within the watershed during normal rain events, extreme rain events, and future rain events with two primary goals in mind:

Visual assessment being conducted in flood-prone areas of Moodna Creek Watershed.

  • Assess the facilities, infrastructure, and urban development that are at risk from flooding along the Moodna Creek and its tributaries within the study area.
  • Develop a series of hydrologic and hydraulic models to assess the extent of potential flooding from the 10-year (10%), 100-year (1%),  and 500-year (0.2%) storm recurrence intervals within the study area. The modeling includes flows for these storm events under existing conditions and also hypothetical scenarios with predicted increases in precipitation and population growth.



The project team used these models and data to propose and evaluate a series of design measures that help reduce and mitigate existing and anticipated flood risk within the study area. Where possible, the proposed solutions prioritized approaches that protect and/or mirror natural flood protection mechanisms within the watershed such as floodplain re-connection and wetland establishment. In addition to flood protection, the project components also provide water quality protection, aesthetics and recreation, pollutant reduction, and wildlife habitat creation.

Land Use and Zoning

Zoning is a powerful tool that determines a region’s exposure to hazards and risk. Zoning determines which uses are permitted, or encouraged, to be built in moderate and high-risk areas. It also prevents certain uses, such as critical facilities, from being built in those areas. Zoning is also a determinant of a region’s character and identity.

In the Lower Moodna Creek watershed, a large majority (82%) of land is zoned for residential use. However, in the flood-prone areas, there is a higher ratio of areas zoned for non-residential uses (commercial, industrial) than in areas that are zoned for potential future development. Specifically, within the 10-year storm recurrence floodplain, 30% of the land is zoned for industrial use. This is likely because several facilities, such as wastewater treatment plants and mills, require access to the river and were strategically developed to be within immediate proximity of waterfront access. The Lower Moodna zoning analysis demonstrated a general preference within watershed to limit residential use of flood-prone areas.

Land Preservation

Preserving land allows for natural stormwater management, as well as limits the exposure of development, and minimizes sources of erosion within the watershed. Preserved land also maintains the hydrologic and ecologic function of the land by allowing rainwater to be absorbed or retained where it falls and thus minimizing run-off. If the land within the floodplain is preserved, it will never be developed, and therefore the risk — a calculation of rate exposure and the value of the potential damage — is eliminated.  Therefore, land preservation, both within the floodplains and in upland areas, is the best way to minimize flood damage.

Conserved riparian areas also generate a range of ecosystem services, in addition to the hazard mitigation benefits they provide. Protected forests, grasslands, and wetlands along rivers and streams can improve water quality, provide habitat to many species, and offer a wide range of recreational opportunities. Given the co-benefits that protected lands provide, there is growing interest in floodplain conservation as a flood damage reduction strategy.

Within the mapped Lower Moodna floodplains, our assessment determined that there appears to be a slight priority for preserving land most at-risk for flooding. This is likely a consequence of prioritizing land that is closest to riparian areas and preserving wetland areas, which are the most likely to experience flooding. Within the floodplains for the 10-year storm, approximately 22.7% is preserved. For the 100-year storm, approximately 21.2% of the land is preserved. Within the 500-year storm, this number drops slightly to 20.3%. These numbers are so close in part because the difference between the 10-year, 100-year, and 500-year floodplains are small in many areas of the watershed.

Hydrology and Hydraulics

Hydrology is the scientific study of the waters of the earth, with a particular focus on how rainfall and evaporation affect the flow of water in streams and storm drains. Hydraulics is the engineering analysis of the flow of water in channels, pipelines, and other hydraulic structures. Hydrology and hydraulics analyses are a key part of flood management.

As part of this flood assessment, Princeton Hydro created a series of hydrologic and hydraulic (H&H) models to assess the extent of potential flooding from the 10-year, 100-year, and 500-year storm recurrence intervals within the Lower Moodna. The modeling, which included flows for these storm events under existing conditions and future conditions based on predicted increases in precipitation and population growth, makes it easier to assess what new areas are most impacted in the future.

These are just a few of the assessments we conducted to analyze the ways in which flooding within the watershed may be affected by changes in land use, precipitation, and mitigation efforts. The flood models we developed informed our recommendations and proposed flood mitigation solutions for reducing and mitigating existing and anticipated flood risk.

Stay tuned for Part Two of this blog series in which we will explore flood risk-reduction strategies that include both traditional engineering and natural systems solutions. For more information about Princeton Hydro’s flood management services, go here: http://bit.ly/PHfloodplain.



Deal Lake Commission Wins Award For “Lake Management Success”

NALMS President Dr. Frank Browne with Princeton Hydro Co-Founder Dr. Stephen Souza accepting the “Lake Management Success Stories” award on behalf of the Deal Lake Commission.

The Deal Lake Commission’s success in the management and restoration of Deal Lake garners a prestigious award from the North American Lake Management Society



The North American Lake Management Society (NALMS) awarded the Deal Lake Commission (DLC) with its “2018 Lake Management Success Stories” award. The award, which was presented at the NALMS 38th International Symposium, is given annually to recognize and honor an individual or group that has made significant lake/reservoir management accomplishments.

The DLC has overseen the management and restoration of Deal Lake and its watershed since 1974. Consisting of appointees from the seven municipalities abutting the lake, the DLC’s mission is to provide leadership, guidance and resources to preserve and restore Deal Lake and its tributaries as a healthy and stable ecosystem. A true challenge in an urban environment.

“It has been both a pleasure and an honor to work with the Deal Lake Commission for the past 35 years,” said Dr. Stephen Souza, Princeton Hydro Co-Founder. “They have shown great resolve to tackle some serious problems affecting the lake and its watershed, serving as a great example for other organizations involved in the restoration of urban lakes.”

Deal Lake is New Jersey’s largest coastal lake, encompassing 162 acres. The lake is surrounded by a 4,400-acre highly urbanized watershed, with the majority of development dating back to the 1960s-1980s. As a result, stormwater management, particularly with respect to water quality and volume management can be especially challenging. The DLC has embraced the numerous challenges, and has worked diligently over the years to correct these issues.

Restored shoreline at the Asbury Park Boat Launch in Deal LakeAt the forefront, the DLC has been managing the primary cause of the lake’s eutrophication: stormwater runoff from the surrounding watershed. In 2014, with funding provided through the NJDEP’s 319(h) program, the DLC implemented a number of demonstration projects, specifically the construction of three bioretention basins, the installation of a large manufactured treatment device, the vegetative stabilization of over 500 feet of heavily eroded sections of the shoreline, and the construction of a rain garden at the Deal Lake boat launch.

Collectively these projects were shown to eliminate localized flooding, decrease floatable loading, and reduce nutrient, sediment and pathogen inputs to the lake. These and other projects implemented by the DLC over the years show that despite Deal Lake being located in a highly urbanized watershed, it is possible to implement cost-effective green infrastructure and stormwater retrofit solutions.

Deal Lake recently won another very competitive 319 (h) program for $735,000 for MTDs, tree boxes, and Green infrastructure improvements to Deal Lake, Sunset Lake and Wesley Lake.

The NALMS award nomination application, which was submitted by Dr. Souza, listed a number of additional achievements of the DLC, including:

  • Educating the community, including school children, to increase awareness and appreciation for the natural environment of the lake;
  • Sponsoring and conducting public engaged spring and fall cleanups, which annually result in the removal of 1,000s of pounds of refuse and debris from the lake;
  • Helping homeowners and public groups recognize and mindfully solve problems related to water quality, siltation, and lake restoration;
  • Serving as the liaison between lakeside communities, County agencies, and the NJDEP;
  • Microbial source tracking investigations with Monmouth University and pathogen source identification work with Clean Ocean Action to decrease E. coli loading;
  • Carp removal, invasive species management, and goose control initiatives;
  • Working with State legislators to implement stricter stormwater controls to reduce pollutant loading, increase storm resiliency, and improve recreational fishing;
  • Participating in the NALMS Secchi Dip In; and
  • Proactively suggesting and supporting community-based, practical ideas to improve the overall environmental quality of the lake and its enjoyment by boaters, anglers, hikers, residents and visitors.

For more information on the Deal Lake Commission, visit DealLake.org.

The successful, long-term improvement of a lake or pond requires a proactive management approach that addresses the beyond simply reacting to weed and algae growth and other symptoms of eutrophication. Our staff can design and implement holistic, ecologically-sound solutions for the most difficult weed and algae challenges. Visit our website to learn more about Princeton Hydro’s lake management services: http://bit.ly/pondlake.

New Green Infrastructure Toolkit for Municipalities

Our partner, New Jersey Future, just launched a brand new, interactive website toolkit to help municipalities across the state incorporate green infrastructure projects into their communities. The New Jersey Green Infrastructure Municipal Toolkit will provide expert information on planning, implementing, and sustaining green infrastructure to manage stormwaterThis toolkit acts as a one-stop resource for community leaders who want to sustainably manage stormwater, reduce localized flooding, and improve water quality.

According to the United States EPA, a significant amount of rivers, lakes, ponds, bays, and estuaries in New Jersey fall into the “Impaired Waters” category, meaning that one or more of their uses are not being met. This reality makes green infrastructure more important than ever in the effort to protect our waterways. When it rains, stormwater creates runoff, which often carries pollution to various types of waterbodies. Green stormwater infrastructure helps to absorb and filter rainwater, reducing the pollution entering our waterways and mitigating flooding in our communities. In urban areas, green infrastructure utilizes natural vegetation to divert stormwater, creating a cost-effective and aesthetically-pleasing way to manage water during rain events.

“We designed this toolkit to bring to light the benefits and importance of investing in green infrastructure at the local level,” said Dr. Stephen Souza, co-founder of Princeton Hydro. “Since the current NJ stormwater rules do not require green infrastructure, we hope to inspire municipal engineers and planning board members to believe in the value through our toolkit. Additionally, we hope it will serve as an educational resource to local officials and decision makers in the Garden State.”

For this project, Princeton Hydro was contracted by Clarke Caton Hintz, an architecture, design, and planning firm, leading this effort on behalf of the nonprofit organization New Jersey Future. Our expert engineers and scientists provided real-world examples integrating green infrastructure into development, in hopes of showing those using the toolkit real world evidence of how green infrastructure can be a part of the daily lexicon of stormwater management. Additionally, Dr. Stephen Souza developed performance standards that municipalities can integrate into stormwater management plans, which are available in the Green Infrastructure Municipal Toolkit.

November Events Spotlight: Conferences Throughout the Country

Princeton Hydro is participating in a variety of conferences taking place throughout the country that address topics ranging from lake management to green infrastructure resiliency:

October 30 – November 2: North American Lake Management Society (NALMS) Conference

NALMS is hosting its 38th International Symposium in Cincinnati Ohio, titled “Now Trending: Innovations in Lake Management.” This year’s symposium includes a robust exhibit hall, a variety of field trips, and a wide array of presentations on topics ranging from the latest in monitoring technologies to combating invasive species to nutrient and water quality management and more. Princeton Hydro’s Dr. Fred Lubnow, Director of Aquatic Programs, and Dr. Stephen Souza, Founder, both of whom have been members of NALMS since its inception, are presenting and exhibiting during the conference.

LEARN MORE



October 31 – November 2: Society for American Military Engineers (SAME) Small Business Conference (SBC)

SAME gives leaders from the A/E/C, environmental, and facility management industries the opportunity to come together with federal agencies in order to showcase best practices and highlight future opportunities for small businesses to work in the federal market. Princeton Hydro is proud to be attending the 2018 SAME SBC Conference, which is being held in New Orleans and co-locating with the Department of Veteran’s Affairs’ National Veterans Small Business Engagement. The program consists of networking events, small business exhibits, a variety of speakers and much more.

LEARN MORE & REGISTER



November 2: The 2nd Annual New Jersey Watershed Conference

We are a proud sponsor of this year’s New Jersey Watershed Conference, which is an educational event that aims to advance knowledge and communications on issues related to water quality and quantity across the state. The agenda features a variety of presentations from local experts on watershed management, stormwater, green infrastructure, and the problems and solutions related to the health of our watersheds. Princeton Hydro is exhibiting & our Marketing Coordinator, Kelsey Mattison, is leading a workshop on “How Social Media can be a Champion for your Watershed.”

LEARN MORE & REGISTER



November 4 – 8: 2018 American Water Resources Association Conference

The AWRA’s 53rd Annual Water Resources Conference is being held in Baltimore, MD. Community, conversations and connections are highlights of every AWRA conference and the 2018 conference will provide plenty of opportunities for all three, including an exhibitor hall, networking events, and variety of presentations and technical sessions. Princeton Hydro’s Christiana Pollack, GISP, CFM is giving a presentation on flood assessment and mitigation.

LEARN MORE & REGISTER



November 8 – 10: Engineers Without Borders (EWB) USA Conference

The EWB, a nonprofit humanitarian organization that partners with developing communities worldwide in order to improve their quality of life, is hosting its USA National Conference in San Francisco.  The ​annual ​conference ​will ​address ​the ​theme ​“Engineers Unlock Potential.” ​Experts, ​practitioners, ​decision-makers, ​young ​professionals ​and ​students ​from ​a ​range ​of ​sectors ​will come together to network, exchange ideas, foster new thinking and develop solutions to the world’s most pressing infrastructure ​challenges. Princeton Hydro Staff Engineer Natalie Rodrigues, EIT, CPESC-IT, a EWB member, is attending the conference and presentation. Her session, titled “So You Think You Might Like to be an EWB Regional Officer or State Representative, ” is designed for those interested in taking the next step beyond Chapter or Project participation at EWB-USA, as well as for current Regional Steering Committee members who want to “amp up” their game.

LEARN MORE & REGISTER



November 13: Society for American Military Engineers (SAME) Philadelphia Resiliency Symposium

SAME Philadelphia is hosting an all day symposium featuring experts on infrastructure resiliency in the face of extreme storms, flooding and other natural disasters. Presentation topics include, Flood Hazard Risk and Climate Change Effects for Bulk Oil Storage Facilities; Post-Storm Infrastructure Improvements and Stream Restoration; and Resilience Risk Analysis and Engineering. Princeton Hydro President Geoffrey Goll, P.E. is giving a presentation titled, “Enhancing Coastal Habitat & Increasing Resiliency through Beneficial Reuse of Dredged Material in New Jersey.” We hope to see you there!

LEARN MORE & REGISTER



November 16: NJ Chapter American Water Resources Association (NJ-AWRA) Future Risk Symposium

As the frequency and intensity of storm events changes, how should watershed managers, engineers, and planners make informed decisions for the future? NJ-AWRA’s 2018 Future Risk Symposium, held at Duke Farms in Hillsborough, NJ, will focus on Future Flooding in Riverine Systems with presentations on climate trends, modeling, and planning that can be used in NJ to prepare for future flood events in New Jersey’s riverine systems. Princeton Hydro’s Christiana Pollack, GISP, CFM is giving a presentation on flood assessment, and the concepts and methods used to estimate flood risk for existing conditions and the year 2050.

LEARN MORE & REGISTER



STAY TUNED FOR MORE EVENT SPOTLIGHTS!

Efforts to Manage Hydrilla in Harveys Lake Prove Difficult but Effective

Collaboration between state agencies and local organizations in Luzerne County bring in grant money to determine Hydrilla infestation levels in Harveys Lake. Treatment efforts are scheduled for 2019.

Story provided by Princeton Hydro Senior Limnologist Michael Hartshorne, and originally published in the Pennsylvania iMapInvasives Fall 2018 Newsletter

Hydrilla (Hydrilla verticillata)

Hydrilla (Hydrilla verticillata) is a relatively new invasive plant in Pennsylvania with the first documented occurrence in 1989 in Adams County. Still, it was not until recently that lake managers, park rangers, and others in the natural resource field have turned their attention to this aggressive invader. Looking incredibly similar to our native waterweed (Elodea canadensis), hydrilla differs in that it is comprised of 4-8 whorled, toothed leaves in contrast to the smooth edged, 3-leaved whorl of E. canadensis.



Harveys Lake, located in the Borough of Harveys Lake (Luzerne County) is a large, deep glacial lake with limited littoral (i.e., shoreline) habitat. A significant body of work has been conducted at the lake with the original Phase I: Diagnostic-Feasibility Lake study conducted in 1992 and a Total Maximum Daily Load (TMDL) issued for phosphorus in 2002.

From 2002 to present, Princeton Hydro has assisted the Borough in the restoration of the lake with a heavy focus on stormwater best management practices (BMPs) supplemented by routine, in-lake water quality monitoring. The goal of the storm water/watershed-based efforts was to reduce the lake’s existing, annual total Hydrilla (Hydrilla verticillata) phosphorus load so it’s in full compliance with the established TMDL.

Mapped locations noted in 2014 and 2015 of hydrilla in Harveys Lake as documented in the Pennsylvania iMapInvasives database.

Over the last 15 years, the installation of these watershed-based projects has led to improved water quality conditions; specifically, phosphorus and algae concentrations have been reduced. While water quality conditions improved Harveys Lake, it was during one of the routine, summer water quality monitoring events conducted in July 2014 that a dense stand of hydrilla was noted at the Pennsylvania Fish and Boat Commission’s public boat launch. More than likely, the plant entered the lake as a “hitchhiker” on the boat or trailer being launched from this public boat launch by someone visiting the lake.

Hydrilla (Hydrilla verticillata) Credit: Nick Decker, DCNR Bureau of State Parks

Since the initial identification and confirmation of the hydrilla, the Borough of Harveys Lake has worked in conjunction with the Harveys Lake Environmental Advisory Council, the Luzerne County Conservation District, the Pennsylvania Department of Environmental Protection, and Princeton Hydro to secure funding for additional surveys to determine the spatial extent and density of growth followed by an aggressive eradication plan.

Grant funds already allocated to Harveys Lake under the state’s Non-Point Source Pollution Program were used to conduct a detailed boat-based and diving aquatic plant survey of Harveys Lake to delineate the distribution and relative abundance of the hydrilla in 2014. During these surveys, the distribution of the hydrilla was found to be limited to the northern portion of the lake with the heaviest densities just off the boat launch with plants observed growing in waters 20-25 feet deep.

A follow-up survey had shown hydrilla coverage to increase from 38% of surveyed sites to 58% of sites in 2016 with hydrilla now present at the lake’s outlet area. Spatial coverage of hydrilla increased from approximately 50 acres in 2014 to 210 acres in 2016, an increase of 160 acres.

This map shows the 2018 proposed treatment area of Harvey’s Lake. Due to funding issues, treatment is now scheduled for 2019. The current hydrilla distribution encompasses the entire littoral zone of Harvey’s Lake.

In hopes of preventing hydrilla escaping into the lake’s outlet stream, the Borough of Harveys Lake funded an emergency treatment of the two-acre outlet area in 2016 utilizing the systemic herbicide Sonar® (Fluridone). A follow-up treatment of 159 acres was conducted in 2017, again utilizing the Fluridone-based systemic herbicide.

The next treatment, which will attempt to cover the majority of the littoral habitat covered by hydrilla, is scheduled for late spring/early summer of 2019. It should be noted that Sonar® is being applied at a low concentration that is effective at eradicating the hydrilla, but will not negatively impact desirable native plant species.

The treatments conducted to date have documented some reductions in the vegetative coverage of hydrilla as well as tuber production relative to the original plant surveys conducted in 2016. However, it is recognized that it will take multiple years of treatment to eradicate this nuisance plant from the lake, as well as a highly proactive, interactive program to educate residents as well as visitors to the lake in preventing the re-introduction of this or other invasive species to Harveys Lake.



The successful, long-term improvement of a lake or pond requires a proactive management approach that addresses the beyond simply reacting to weed and algae growth and other symptoms of eutrophication. Our staff can design and implement holistic, ecologically-sound solutions for the most difficult weed and algae challenges. Visit our website to learn more about Princeton Hydro’s lake management services: http://bit.ly/pondlake

Michael Hartshorne‘s  primary areas of expertise include lake and stream diagnostic studies, TMDL development, watershed management, and small pond management and lake restoration. He is particularly skilled in all facets of water quality characterization, from field data collection to subsequent statistical analysis, modeling, technical reporting, and the selection and implementation of best management practices. He has extensive experience in utilizing water quality data in concert with statistical and modeling packages to support load reduction allocations for the achievement of water quality standards or tailored thresholds set forth to reduce the rate of cultural eutrophication. He also has significant experience in conducting detailed macrophyte, fishery, and benthic surveys.

Mitigation Milestone Reached at Mattawoman Creek Mitigation Site

Photo courtesy of GreenVest

Mattawoman Creek Mitigation Project will Restore and Protect 80+ Acres of Mattawoman Creek, Chesapeake Bay’s Most Productive Tributary

As one of the Chesapeake Bay’s most productive tributaries and a vital part of Maryland’s natural resources, Mattawoman Creek supports some of the largest populations of finfish, amphibians, and birds in the state. A collaborative team of private and public sector entities have designed the “Mattawoman Creek Mitigation Site” in Pomfret, Charles County, Maryland, an effort that will enhance or create 64+ acres of wetlands and restore nearly 3,800 linear feet of this perennial stream.  With over 28,500 native trees and shrubs to be planted, this mitigation project will result in 80+ acres of continuous, forested wetland with complex and diverse vegetative communities. It is expected to provide a wide array of habitat to resident and transient wildlife, including birds, reptiles, invertebrates, amphibians and rare, threatened and endangered species.

Unique to this project, Mattawoman Creek Mitigation Site is Maryland’s first-ever Umbrella Mitigation Banking Instrument (UMBI) for federal and other government agency use.   A UMBI is the bundling of multiple mitigation banks into one agreement in order to streamline the regulatory approval process, thereby eliminating steps and involving fewer resources. The Maryland UMBI document helps the USAF and other public agencies secure certainty of cost and schedule, facilitate timely permit issuance, and expedite the satisfaction of their permitted requirements for planned capital improvement projects. This approach also maximizes the scale of restoration and resulting land protection and efforts, creating contiguous blocks of habitat with greatly enhanced benefits compared to single, permittee-responsible projects. This precedent was a result of a partnership between United States Air Force (USAF) and Joint Base Andrews (JBA), U.S. Army Corps of Engineers (USACE), Maryland Department of the Environment (MDE), GreenTrust Alliance, GreenVest, and Princeton Hydro.

Projects completed under the UMBI will reduce federal and state workload expediting the regulatory review and issuance of permits by the MDE and USACE. Additionally, projects completed under this UMBI will aid in compliance with the Federal Paperwork Reduction Act where federal regulatory staff can evaluate success and performance issues for multiple permittees at one single habitat restoration or mitigation site. In addition, federal costs are capped, and liabilities  are transferred through to GreenVest, the private sector operator, and GreenTrust Alliance, the nonprofit bank sponsor, who will also serve as the long-term steward of sites restored under this program.

Pictured is the southern restoration area after
sorghum germination, prior to wetland creation
and reestablishment.
A function-based stream assessment was
performed on the degraded channel.



Photo courtesy of GreenVestDesign, engineering/modeling, and permitting of the site was completed by  Princeton Hydro and GreenVest under our currently Ecosystem Restoration contract with the USACE. Princeton Hydro also provided an Environmental Assessment and Environmental Baseline Survey, and conducted a geotechnical investigation, which included the advancement of test pits, visual and manual investigation techniques and logging, infiltration testing, laboratory soils testing, and seasonal high-water table estimations.

A wetland water budget was also developed for the proposed wetland creation and restoration to determine if sufficient water is available to establish or reestablish wetlands on the site. It was also used to inform design development including proposed grading and plant community composition. The establishment and re-establishment of wetlands on the site will be accomplished through directed grading, ditch plugging and stream restoration designed to maximize the retention of surface water, floodplain re-connection, and groundwater inputs.

Highlights from the Mattawoman Creek Wetland and Stream Mitigation project:
  • 80 acres of land were placed into conservation easement and removed from active row crop production and cattle pasture. The easement, which is held by GreenTrust Alliance, provides permanent protection for all 80 acres.
  • Over 64 acres of wetlands will be restored, created, enhanced or preserved, which will sequester approximately 75 tons of carbon per year.
  • 3,798 linear feet of perennial stream will be restored by re-establishing, historic floodplain access during more frequent storm events, stabilizing hydraulics and geomorphology, and adding aquatic habitat value.
  • Full integration of the wetland and stream restoration elements will occur exponentially, increasing anticipated functions and values in the post construction condition. Functions include: storm damage and flood attenuation, groundwater recharge and discharge, nutrient cycling and sequestration, local water quality improvement, and wildlife habitat enhancements.
  • This project will also create and enhance the forested wetland and stream habitat for the State-listed Threatened Selys’ Sundragon (Helocordulia selysii).
  • As part of the site design, over 28,500 native trees and shrubs will be planted.
  • The Mattawoman Creek Mitigation Site is located within a Tier 3 Biodiversity Conservation Network area. These areas are classified by the Department of Natural Resources as “highly significant for biodiversity conservation” and are priority conservation areas that support critical species and habitats.
  • The project will yield advanced mitigation values: 7.913 in wetland credits and 1,595 in stream credits. These credits are durable and will be available for JBA’s use in order to satisfy permitted impacts associated with planned capital improvement projects.

Over 6,000 acres (25%) of the Mattawoman Creek watershed has been protected by public ownership and various conservation and agricultural easements, which, in addition to the Mattawoman Creek Mitigation Site, help ensure that Mattawoman Creek forever remains a high-quality destination for outdoor recreation.

Princeton Hydro specializes in the planning, design, permitting, implementing, and maintenance of tidal and freshwater wetland rehabilitation projects. To learn more about our wetland restoration, creation, and enhancement services, visit: http://bit.ly/PHwetland

Employee Spotlight: Meet Our New Team Members

We’re excited to welcome two new staff members and seven new part-time staff & interns to our team who are spread throughout our Ringoes, Sicklerville, and Glastonbury offices.



Full-Time Staff Members:
Kelsey Mattison, Marketing Coordinator

Kelsey is a recent graduate of St. Lawrence University with a degree in English and environmental studies and a passion for environmental communication. Through her extracurricular work with various nonprofit organizations, she has developed expertise in social media management, content writing, storytelling, and interdisciplinary thinking. Kelsey believes that effective communication needs to be multi-faceted, which is reflected in the diversity of her experience. She served as Photography Editor of St. Lawrence University’s newspaper, worked in digital media for the environmental outreach program of St. Lawrence University,  produced stories for Northern New York’s public radio station, and developed feature content for St. Lawrence County’s Chamber of Commerce. As a member of the Princeton Hydro team, she aims to further its mission by taking creative approaches to communicating about our shared home: Planet Earth. In her free time, Kelsey enjoys dancing of all sorts, going on long walks with her camera, and spending time with friends and family in nature.

Christine Worthington, Accounting Assistant

Christine is a detailed-oriented Accounting Assistant who has over 15 years of experience working in office administration for local businesses. She loves vacationing in Jamaica with her husband and spending time with her two sons & three grandchildren. In her free time, she listens to country music and visits new cities like Nashville.



Part-time Staff, Field Assistants & Interns:
Heidi Golden, PhD, Aquatic Ecologist

Heidi is an aquatic ecologist and evolutionary biologist with a strong background in fish monitoring, aquatic habitat assessment, population and community ecology, and population genetics and genomics. She holds a PhD in Ecology and Evolutionary Biology and a Master of Science in Forestry and Wildlife Biology. In addition to her ecology expertise, Heidi has experience in GIS analysis, R statistical programing, scientific writing, permitting, and a wide range of field and laboratory techniques. Prior to joining Princeton Hydro, Heidi worked as a postdoctoral researcher with The Woods Hole Research Center, The Marine Biological Laboratory, and The University of Connecticut, where she continues to serve as adjunct faculty to the Department of Ecology and Evolutionary Biology. She investigated ecological and evolutionary responses of fish populations to rapid environmental change. Her professional experience also includes coordinating field expeditions in remote locations of the Alaskan Arctic, tagging and tracking thousands of fish through remote PIT-tag antenna arrays, using environmental DNA to monitor fish presence and movement, and developing experiments to assess ecosystem responses to change. She enjoys raising ducks, swimming in cold rivers, hiking, kayaking, camping, and family.

Andrew Greenlaw, Water Resources Intern

Andrew Greenlaw is in his fourth year at the University of Connecticut, majoring in Civil Engineering with a minor in Environmental Engineering. Before studying engineering he taught at a Marine science summer camp in Groton, CT, off of the Long Island Sound. He joined Princeton Hydro with the hope of combining his biological sciences experience with his academic engineering knowledge. He enjoys hiking, fishing, and just about any outdoor sport.

Ryan Lindsay, Water Resources Intern

Ryan is a double major at Rowan University focusing in both Civil & Environmental Engineering and Computer Science, and is currently finishing his final semester. He’s worked on various engineering clinic projects ranging from developing a pavement analysis program for Rhode Island DOT to a feasibility study to assist those with disabilities. His current project is to develop a home security/monitoring system with an accompanying mobile application. In the future, Ryan hopes to develop civil engineering applications for use by design engineers, and hopes that with his unique skillset he can make future engineers’ jobs easier and more efficient. Ryan enjoys playing baseball, listening to music, hiking and hanging out with friends and family.

Nick Niezgoda, Aquatics Field Assistant

Nick graduated in 2017 from Western State Colorado University with a B.S. in Biology. He lived and worked at Rocky Mountain Biological Laboratory studying defense genotypes of B.stricta under Duke University’s Tom Mitchell-Olds Lab in 2016 and 2018. At RMBL, He also assisted in trapping and banding of Mountain White-Crowned Sparrows. He enjoys cycling, hiking, and birding!

Emily McGuckin, Aquatics Field Assistant

Emily is a recent graduate from Stockton University, with a BS in marine biology, and a minor in environmental science. She just finished up an internship with the American Littoral Society at Sandy Hook, where she helped manage the fish tagging program and educating others on the importance of maintaining an accurate fisheries database. She has experience in both freshwater and marine ecosystem management and is excited to continue learning about ecological restoration and management.  She is very interested in ecosystem resilience, specifically climate change and how it affects estuaries and estuarine organisms. Emily is hoping to attend graduate school in the near future to further her studies in marine science.

Pat Rose, Aquatics Field Assistant

Pat got interested in aquatics during a summer course studying at Lake Atitlán, Guatemala as an undergraduate at SUNY Oneonta. After graduation, he spent a year volunteering with AmeriCorps in Knoxville, TN as part of a Water Quality Team. While in Tennessee, he spent the majority of his time educating high school students on how to protect and improve local waterways and watersheds as part of the Adopt-A-Watershed program. The year, through AmeriCorps, he also worked with government organizations performing biological sampling and erosion monitoring in local streams. Pat is set to graduate from SUNY Oneonta with a M.S. in Lake Management in December. He created an interim lake management plan for a small reservoir in New York that has had cyanobacterial blooms over the past few years. Pat spent this past summer completing a co-op with an aquatic plant management company in the Pacific Northwest, working primarily with invasive Eurasian and hybrid watermilfoil populations.
